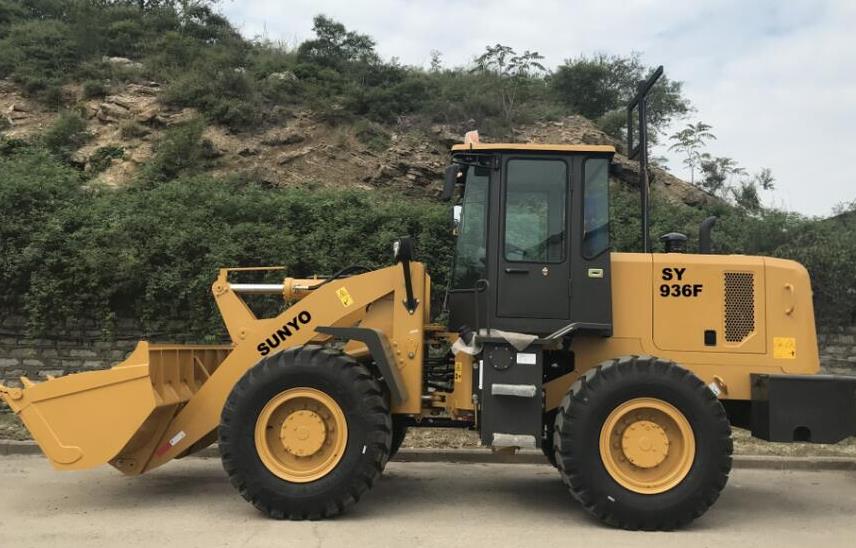

SY936F wheel loader
SY936F wheel loader specifications:
| NO. | item | Parameter |
| 1 | Rated loading | 3000kg |
| 2 | overall weight | 9600kg |
| 3 | Rated bucket capacity | 1.8 CBM |
| 4 | Maximum tractive force | 97KN |
| 5 | Maximum breakout force | 127KN |
| 6 | Maximum grade ability | 30 degree |
| 7 | Maximum dump height | 3100mm |
| 8 | Maximum dump reach | 125mm |
| 9 | Overall dimension (L*W*H) | 6950*2370*3200mm |
| 10 | Minimum turning radius | 5097mm |
| 11 | Engine model | DEUTZ WP6G125E22 |
| 12 | Engine type | lnline water cooled, four stroke |
| 13 | No. of cylinder-bore/stroke | 6-108*125mm |
| 14 | Engine rated power/ | 92kw |
| 15 | Maximum torque | 500N.m |
| 16 | Min fuel-consume ratio | less 210g/kw.h |
| 17 | Torque converter | YJ315 |
| 18 | gearbox mode | Power shift normally engaged straight gear |
| 19 | gear shift | 4 forward shift 2 reverse shift |
| 20 | Maximum speed | 40km/h |
| 21 | Main reducing spiral | bevel gear grade 1reduction |
| 22 | Decelerating mode | bevel gear grade 1reduction |
| 23 | Wheel base (mm) | 2660mm |
| 24 | Wheel tread (mm) | 1800mm |
| 25 | Ground clearance | 400mm |
| 26 | System working pressure | 16.5 MPa |
| 27 | Boom lifting time | 4.83 s |
| 28 | Total time | 9.15s more/less0.5s |
| 29 | Fuel tank capacity | 156L |
| 30 | function of leveling automatically | yes |
| 31 | Service brake | air assist disc brake on 4 wheels |
| 32 | Parking brake | Manual disk brake |
| 33 | Type specification | 17.5-25 |
| 34 | Front tyre pressure | 0.4Mpa |
| 35 | Rear tyre pressure | 0.35Mpa |
More SY936F pictures

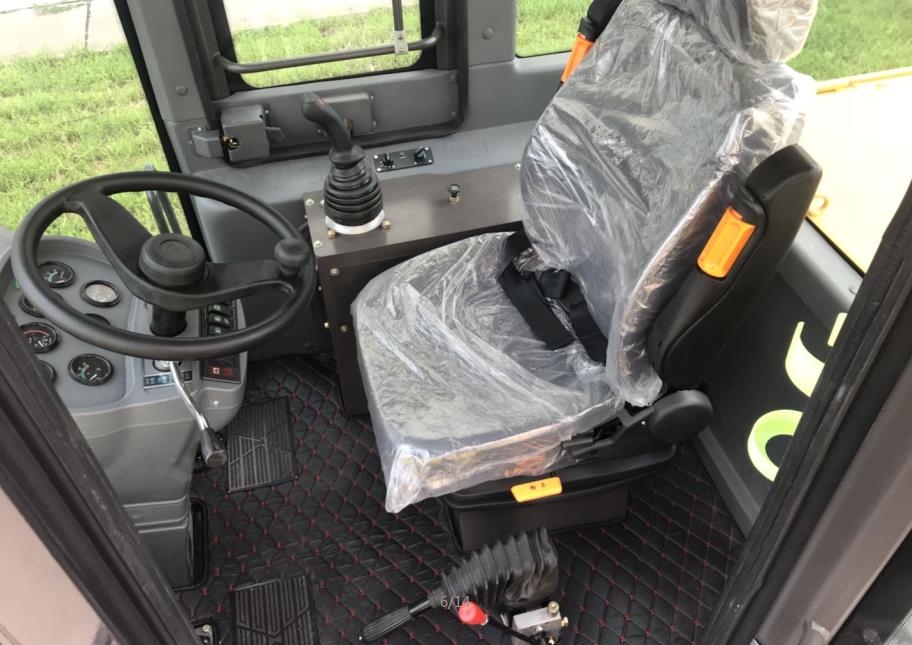

Cabin:

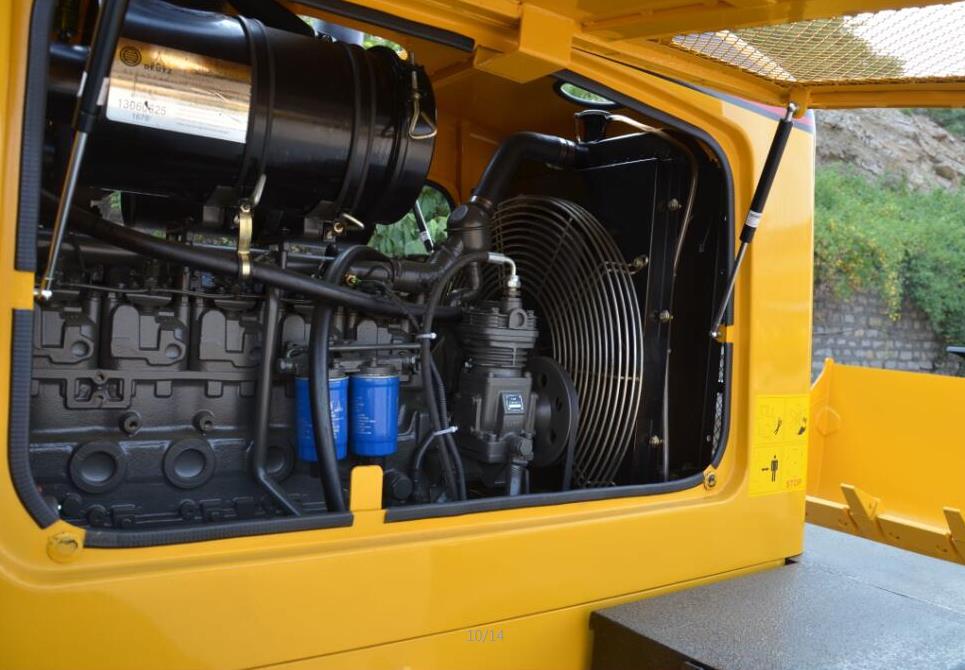

Engine:
Engine Label:
